ASTM/EN/JIS Ready Stock Stainless Steel Channel | ASTM A36 U-Channel For Construction | Fast Shipping Worldwide

ASTM/EN/JIS Ready Stock Stainless Steel Channel | ASTM A36 U-Channel For Construction | Fast Shipping Worldwide

Name: ASTM/EN/JIS Ready Stock Stainless Steel Channel | ASTM A36 U-Channel For Construction | Fast Shipping Worldwide
Rating: 5.0 (48 reviews)

Quantity:




Inquire Add to Basket

Product Description1

Products Description

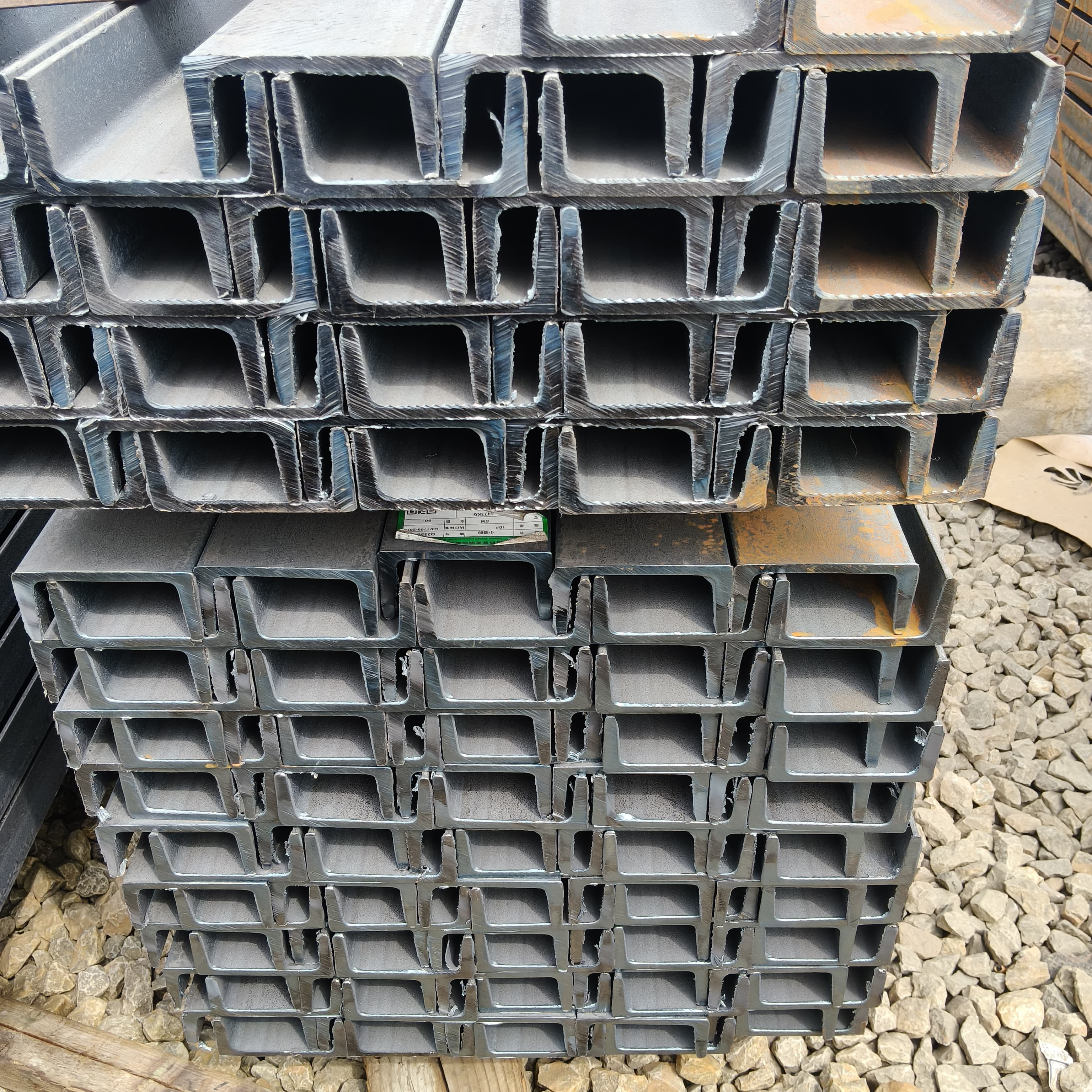

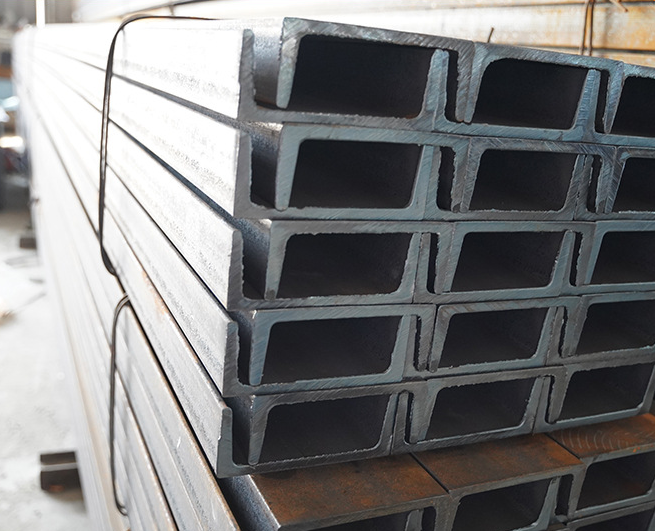

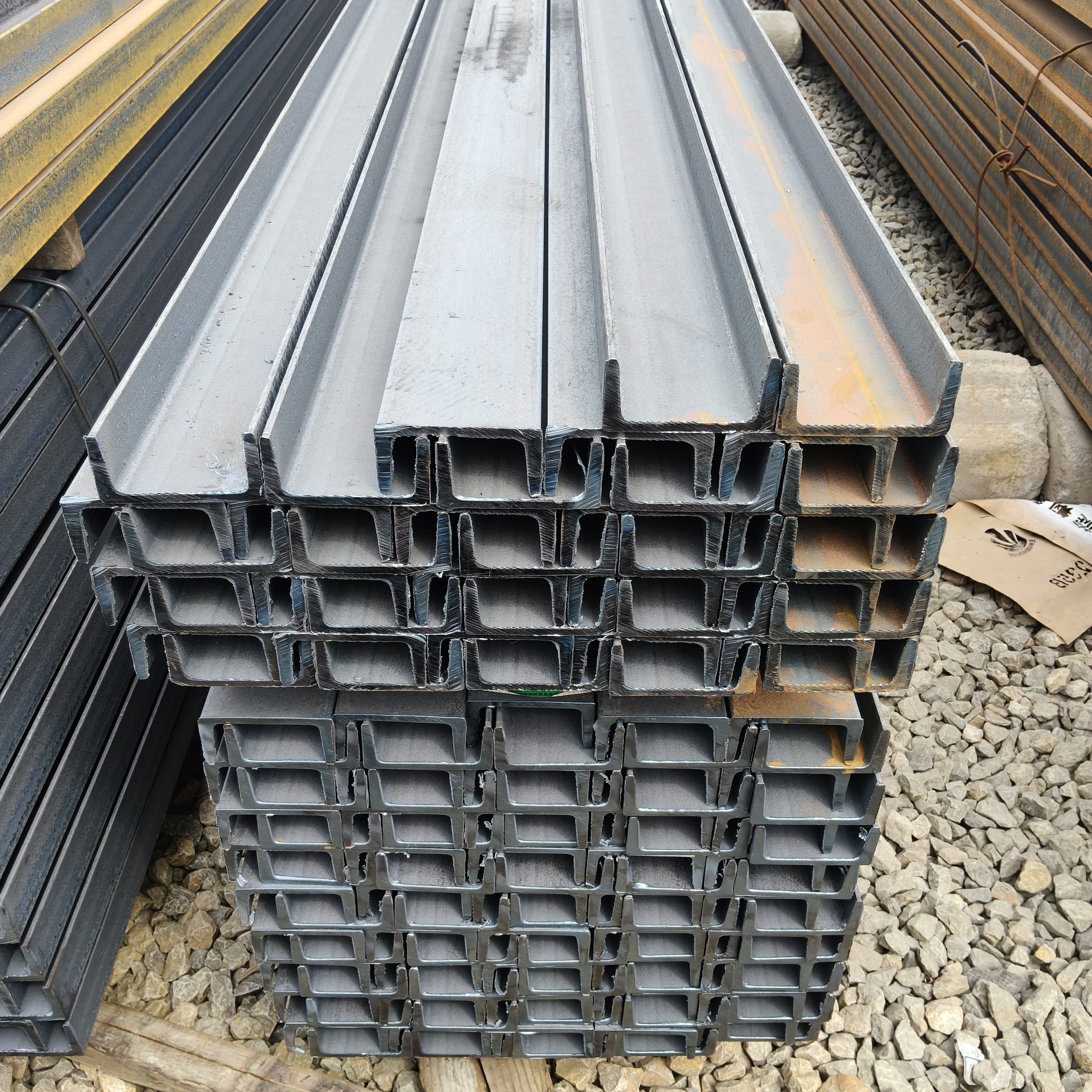

ASTM/EN/JIS Ready Stock Stainless Steel Channel | ASTM A36 U-Channel for Construction | Fast Shipping Worldwide manufacture

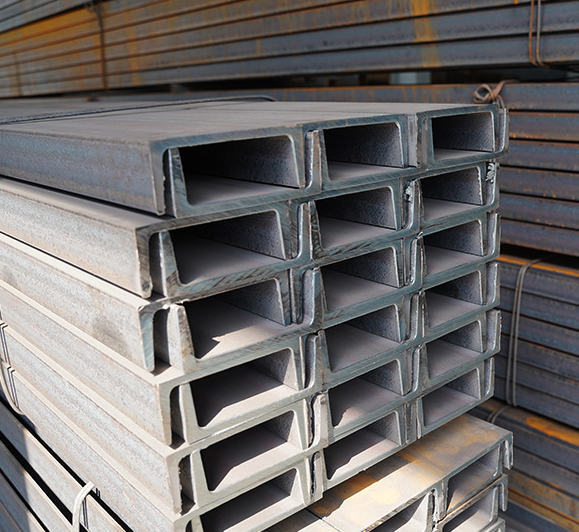

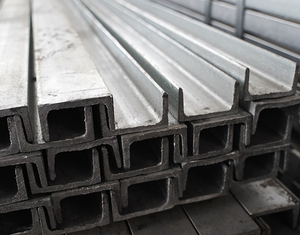

U-beam

Channel steel, with a grooved cross-section, is widely used in construction structures (beams, columns, frames), mechanical manufacturing (bases, supports), vehicle manufacturing (chassis, rails), storage racks, and bridge engineering. Its advantages include high strength with economical cross-sections (material-efficient), convenient construction (weldable and bolt-connected), strong processability (easy to cut/drill), and cost-effectiveness, making it suitable for load-bearing applications.

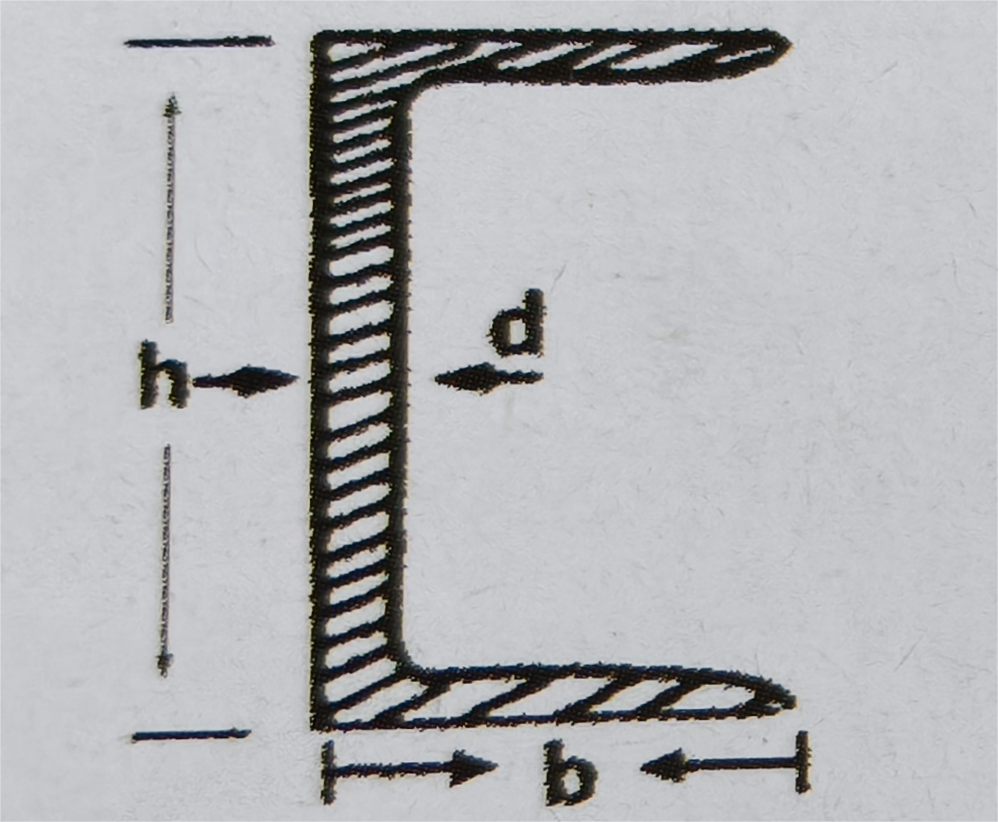

U-steel standard

H—height

b—leg width

d—waist thickness

Steel density=7.85g/cm³

Universal length of channel steel

5-8, length 5-12 meters

10-18, length 5-19 meters

20-40, length 6-19 meters

Model	Size(mm)					Theoretical weight (kg/m)	Model	Size(mm)				Theoretical weight (kg/m)
Model		h	b	d		Theoretical weight (kg/m)	Model		h	b	d	Theoretical weight (kg/m)
U-steel(GB 707-88)									U-steel(GB 707-88)
5	50	37	4.5	5.438	24a	240	78	7.0	26.860
6.3	63	40	4.8	6.634	24b	240	80	9.0	30.628
6.5	65	40	4.8	6.709	24c	240	82	11.0	34.396
8	80	43	5.0	8.045	25a	250	78	7.0	27.410
10	100	48	5.3	10.007	25b	250	80	9.0	31.335
12	120	53	5.5	12.059	25c	250	82	11.0	35.260
12.6	126	53	5.5	12.318	27a	270	82	7.5	30.838
14a	140	58	6.0	14.535	27b	270	84	9.5	35.077
14b	140	60	8.0	16.733	27c	270	86	11.5	39.316
16a	160	63	6.5	17.240	28a	280	82	7.5	31.427
16	160	65	8.5	19.752	28b	280	84	9.5	35.823
18a	180	68	7.0	20.174	28c	280	86	11.5	40.219
18	180	70	9.0	23.000	30a	300	85	7.5	34.463
20a	200	73	7.0	22.637	30b	300	87	9.5	39.173
20	200	75	9.0	25.777	30c	300	89	11.5	43.883
22a	220	77	7.0	24.999	32a	320	88	8.0	38.083
22	220	79	9.0	28.453	32b	320	90	10.0	43.107
32c	320	92	12.0	48.131	40a	400	100	10.5	58.928
36a	360	96	9.0	47.814	40b	400	102	12.5	65.204
36b	360	98	11.0	53.466	40c	400	104	14.5	71.488
36c	360	100	13.0	59.118
Light U-steel(YB 164-63)									Light U-steel(YB 164-63)
5	50	32	4.4	4.84	20	200	76	5.2	18.4
6.5	65	36	4.4	5.90	20a	200	80	5.2	19.8
8	80	40	4.5	7.05	22	220	82	5.4	21.0
10	100	46	4.5	8.59	22a	220	87	5.4	22.6
12	120	52	4.8	10.4	24	240	90	5.6	24.0
14	140	58	4.9	12.3	24a	240	95	5.6	25.8
14a	140	62	4.9	13.3	27	270	95	6.0	27.7
16	160	64	5.0	14.2	30	300	100	6.5	31.8
16a	160	68	5.0	15.3	33	330	105	7.0	36.5
18	180	70	5.1	16.3	36	360	110	7.5	41.9
18a	180	74	5.1	17.4	40	400	115	8.0	48.3

Product Paramenters

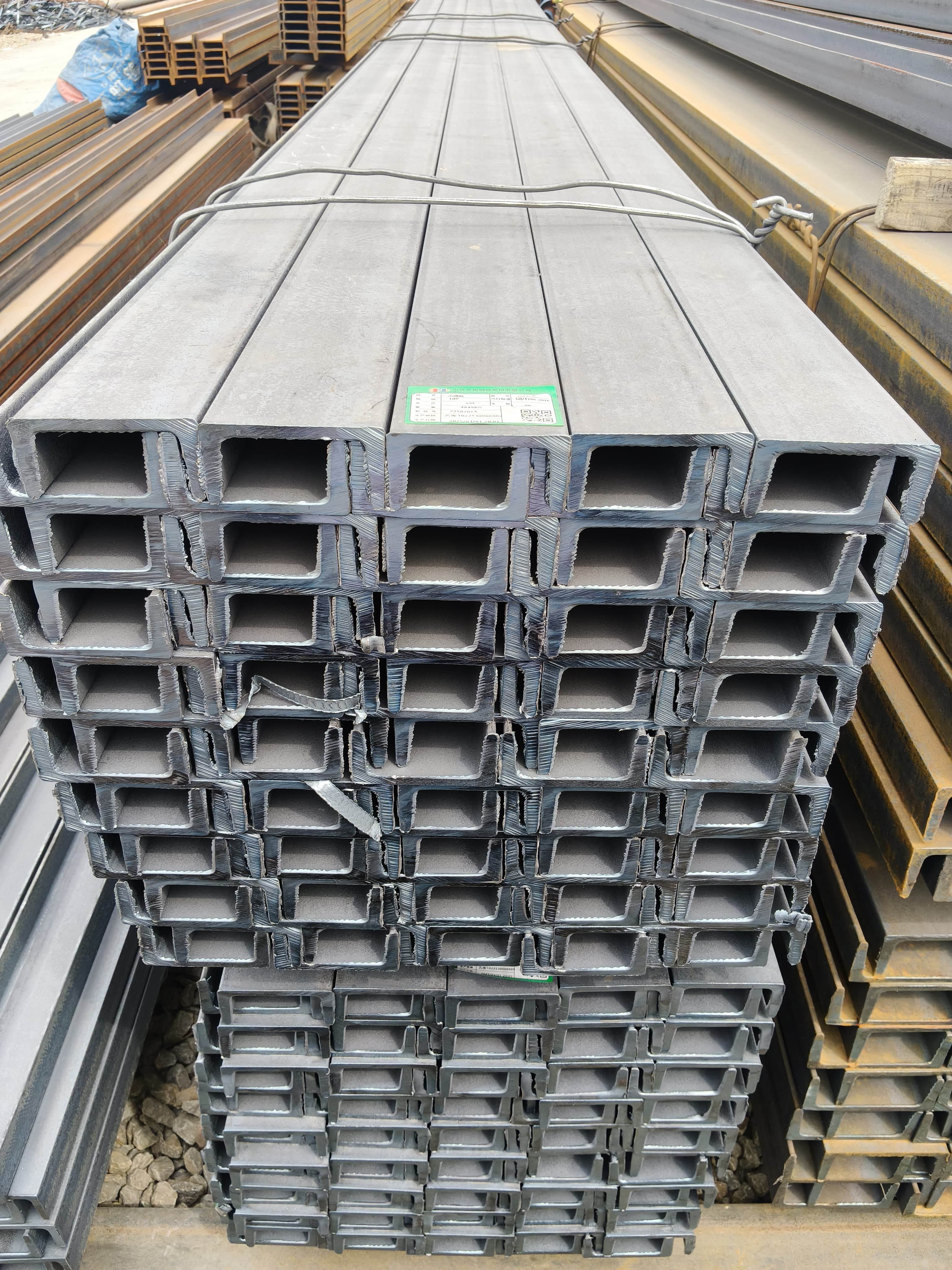

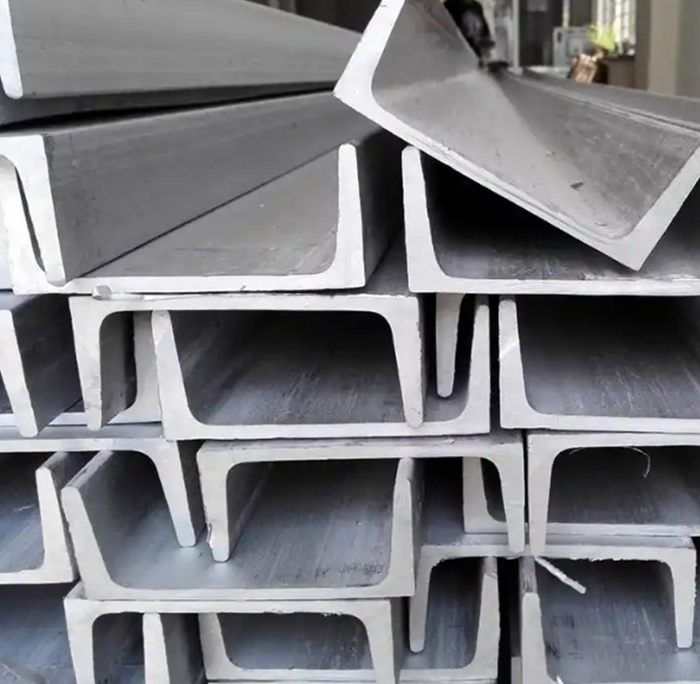

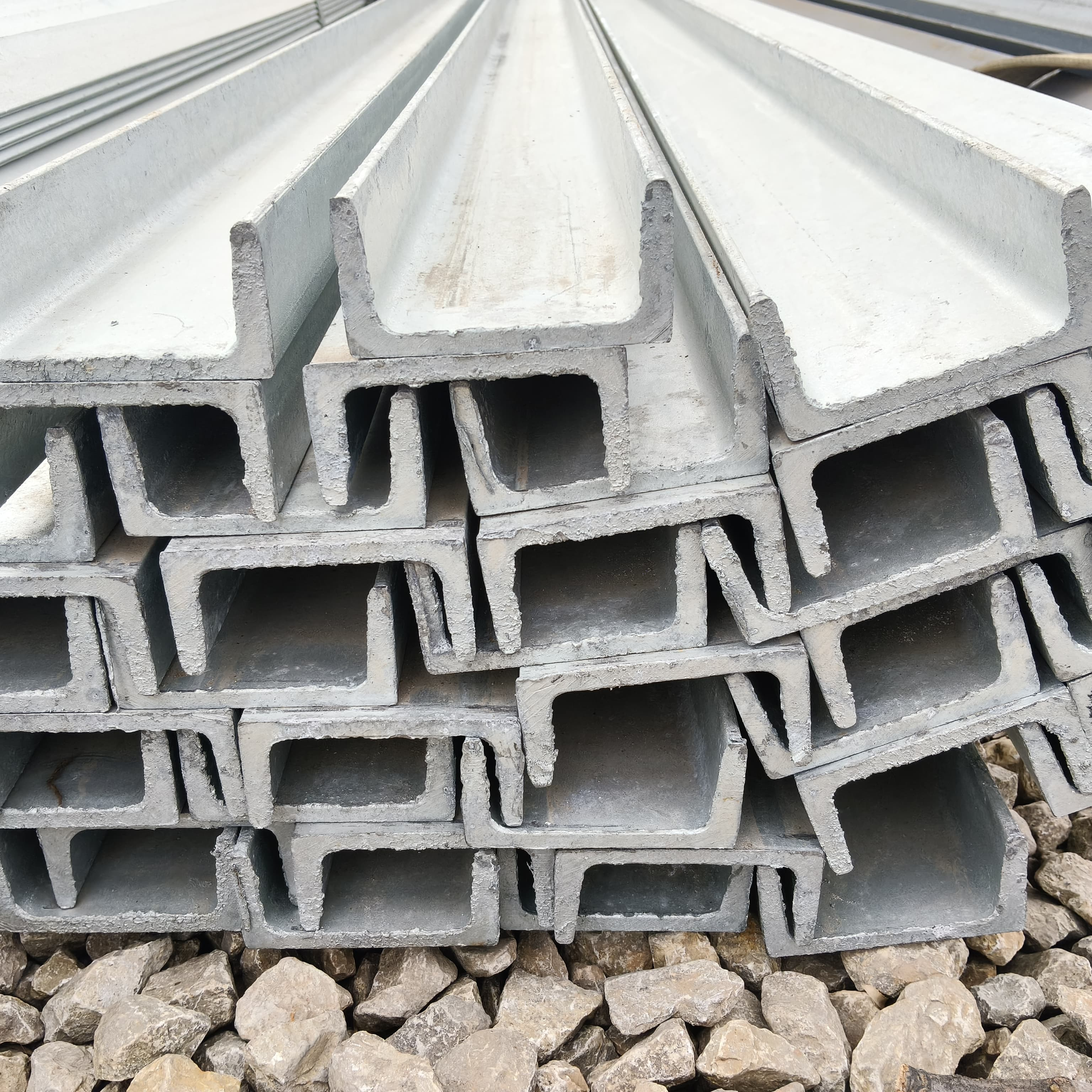

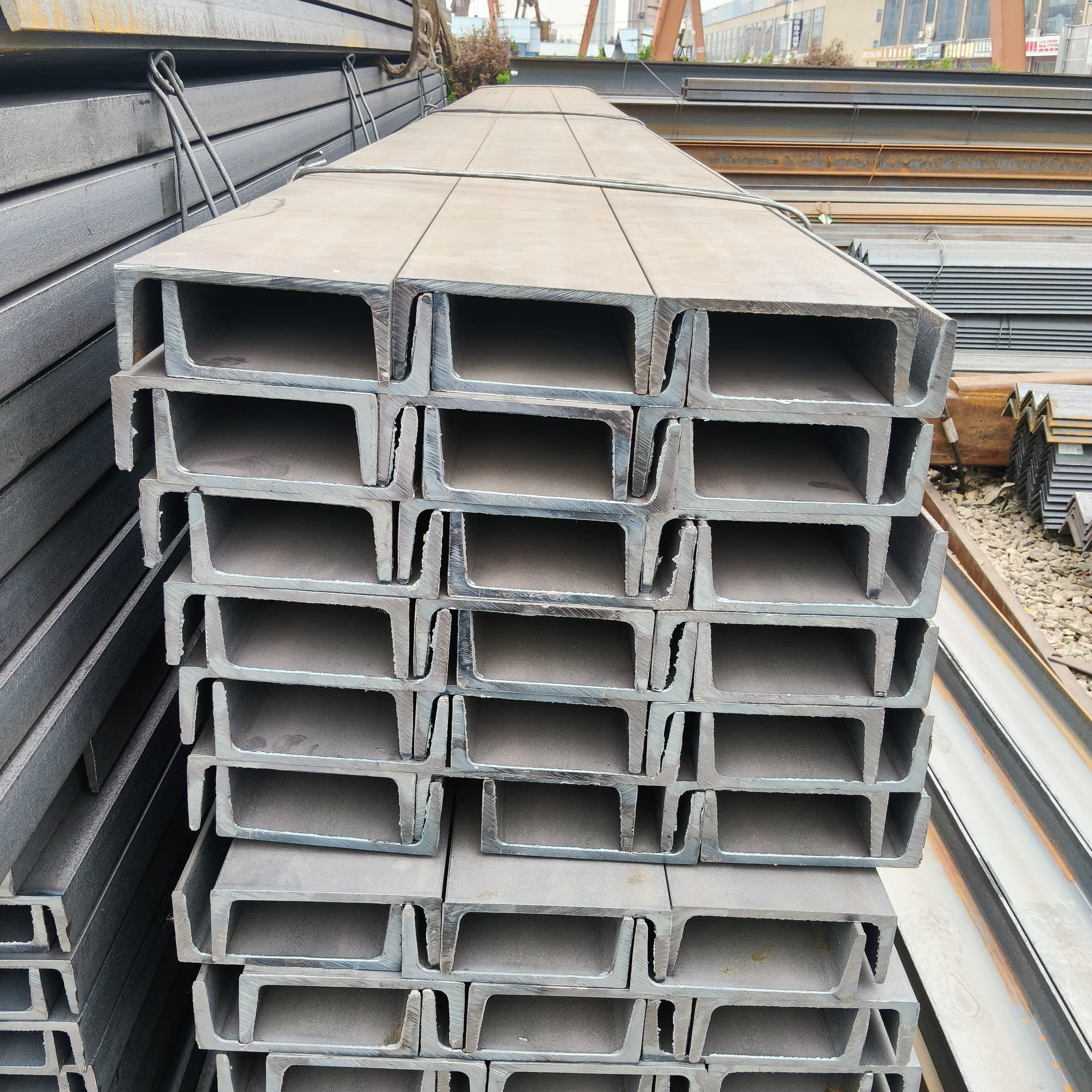

ASTM/EN/JIS Ready Stock Stainless Steel Channel | ASTM A36 U-Channel for Construction | Fast Shipping Worldwide factory

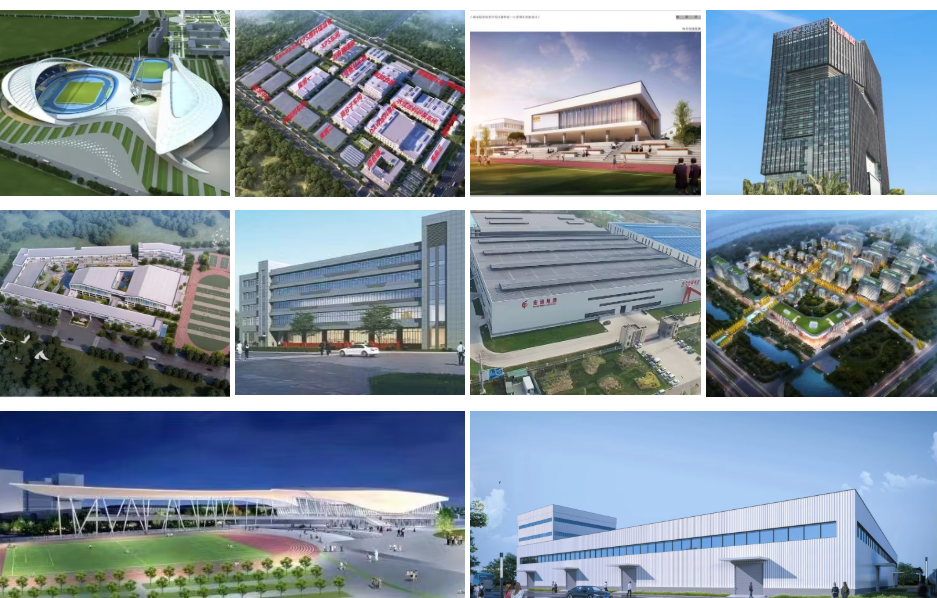

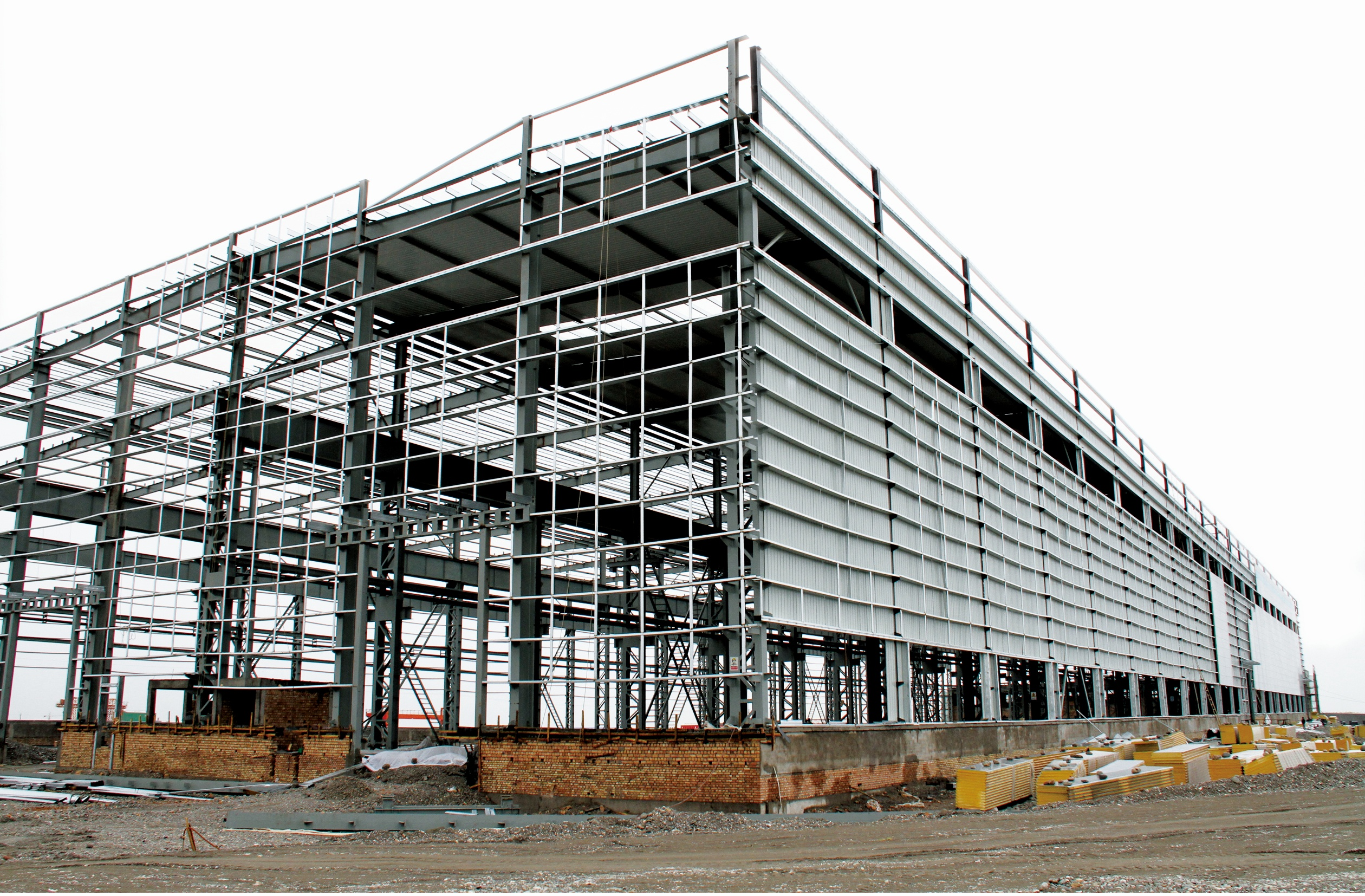

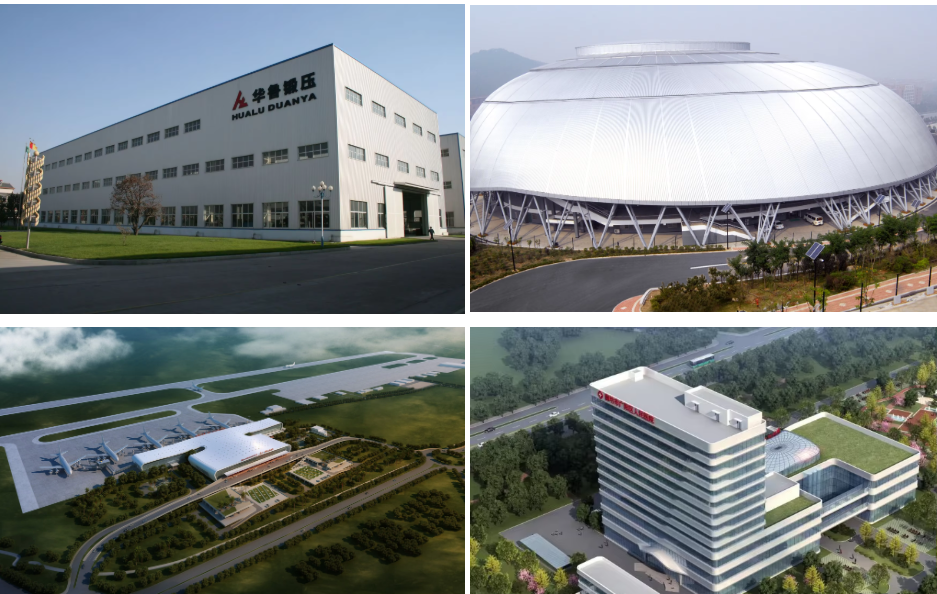

Product Application

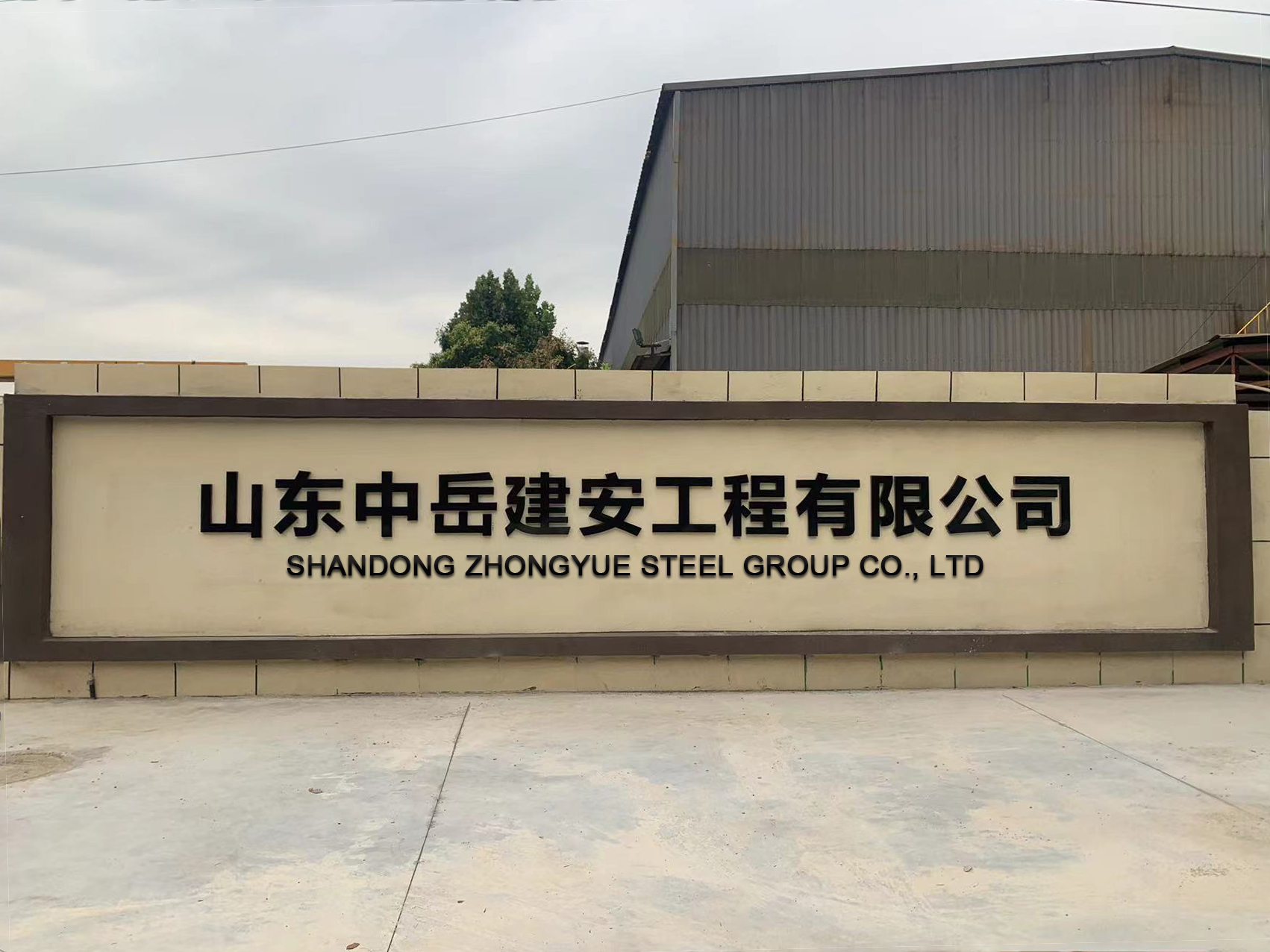

Company Profile

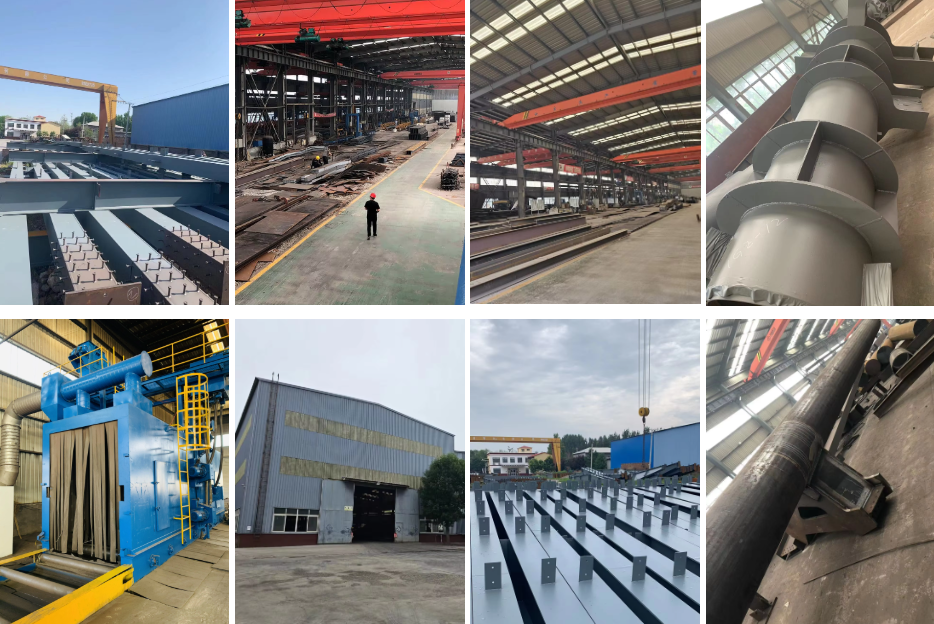

Shandong Zhongyue Steel Group

Headquartered in Shandong Province, China, Shandong Zhongyue Steel Group is a high-tech industrial leader specializing in steel structure manufacturing, seamless steel pipe production, and intelligent logistics services. With three subsidiaries totaling US$176million in investment and occupying 400 acres, the group benefits from strategic proximity to the Ji-Liao Expressway,ensuring convenient transportation access.

Steel Structure Division
Equipped with two advanced production lines and state-of-the-art processing equipment, the group produces over 35,000 tons of steel structures annually. Products are widely applied in:
* Industrial plants and storage facilities
* Bridges and super high-rise buildings
* Modular prefabricated buildings
* New energy infrastructure
* Heavy machinery frames
Seamless Steel Pipe Division
Featuring four hot-rolling production lines, the group manufactures 200,000 tons of seamless steel pipes annually. Key products include:
* Corrosion-resistant and pressure-resistant oil well pipes
* High-pressure boiler pipes
* Hydraulic prop pipes
* High-precision mechanical pipes
* Structural pipes
With diameters ranging from 38–219 mm and wall thicknesses of 4–22 mm, these pipes serve industries such as petroleum, chemicalengineering, coal, machinery, hydraulic props, and automotive.
Competitive Advantages
By integrating German precision with the scale advantages of Chinese industry, the group delivers cost-effective solutions without compromising quality. Its vertically integrated supply chain—from raw material procurement to global delivery—ensures consistent quality, prompt response, and 24/7 technical support.

Logistics Delivery

FAQ

1. How to purchase your products?
* Payment Methods: Telegraphic Transfer (TT) and Letter of Credit (L/C) are accepted. TT is preferred.
* Payment Terms: * 30% deposit paid before production commences;
* 70% balance paid via TT before shipment.

2. What is the delivery time?
* Standard Lead Time: 15–40 days (varies based on order quantity).
* Expedited Service: Available upon request (additional fees may apply).

3. How are products packaged?
* Standard Packaging: Export-grade packaging (moisture-proof, shock-resistant, damage-proof).
* Custom Packaging: Customized solutions are available, with additional costs to be covered by the buyer.

4. How to install products after delivery?
* Technical Support: * Detailed installation diagrams and operation manuals provided;
* On-site technical assistance available upon request (buyer responsible for visa fees, airfare,
accommodation, and labor costs).
