Professional manufacturer of steel structure buildings with many years of export experience.
All steel structures comply with international standards: GB, ASTM, EN, JIS, etc.
High strength steel material Q235B, Q355B, with strong stability and long service life.
Excellent seismic resistance, wind resistance and snow load capacity.
High prefabrication rate, factory-made components, stable and reliable quality.
Precision processing by CNC cutting, welding and drilling.
Anti-corrosion treatment: sandblasting, primer, topcoat, hot-dip galvanized available.
Environmentally friendly, no construction waste, 100% recyclable.
Flexible design, can be customized in size, height, span and layout.
Large span design, no middle pillars, high space utilization rate.
Fast construction speed, saves 40%-60% construction period than concrete buildings.
Low labor cost, less on-site work and simple installation.
Low maintenance cost in later use.
Can be dismantled and reused, high comprehensive cost performance.
Beautiful appearance, can be designed as modern industrial or commercial style.
Complete supporting system: roof, wall, door, window, ceiling, lighting, ventilation.
Suitable for various terrain and geological conditions.
Strict quality inspection before shipment.
Complete certificates: ISO, CE,
Professional design team provides free drawing and scheme.
One-stop service: design, production, packaging, shipping, installation guidance.
Safe packaging for long-distance ocean transportation.
Professional technical support for installation and construction.
Super large span available, suitable for crane and heavy machine use.
High bearing capacity for heavy industrial production.
Reserved holes for cables, pipes, ventilation and equipment.
Good lighting and ventilation design, comfortable working environment.
Waterproof, heat insulation and sound insulation performance.

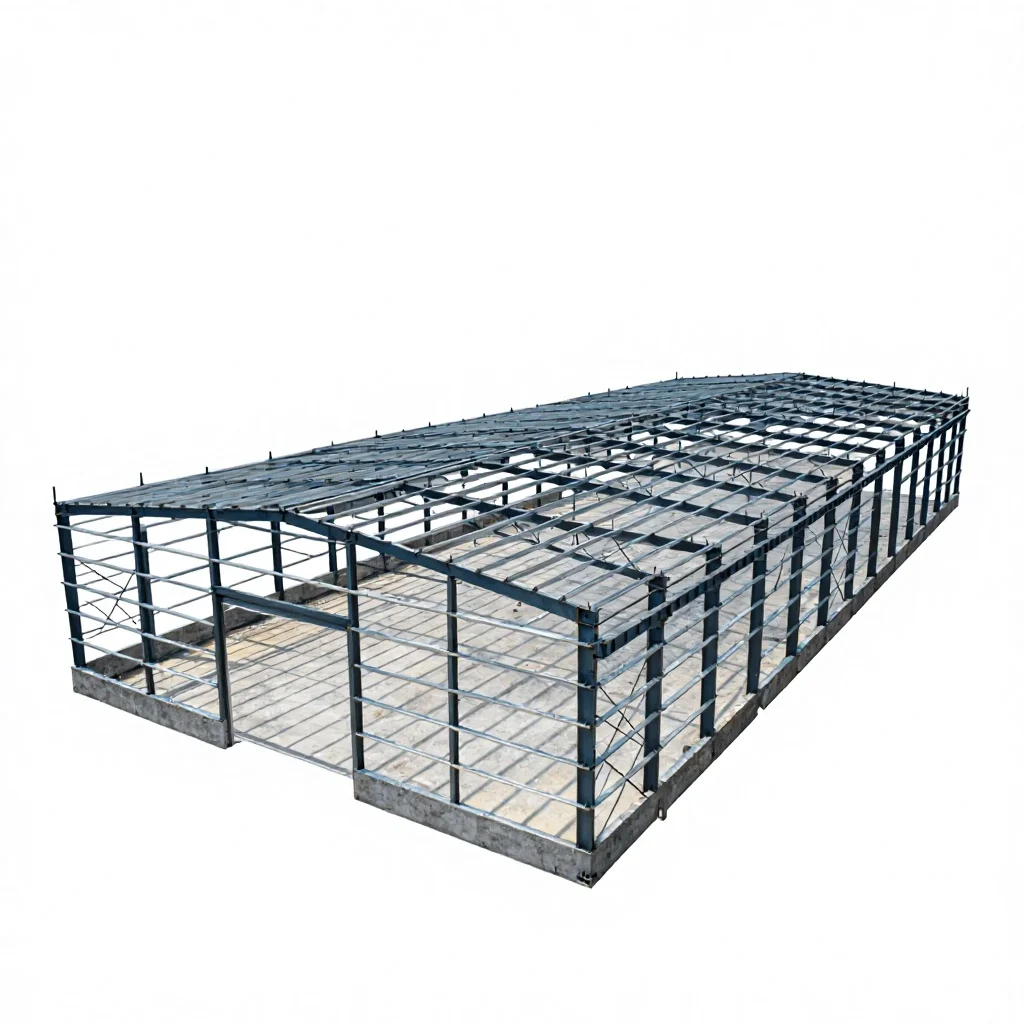

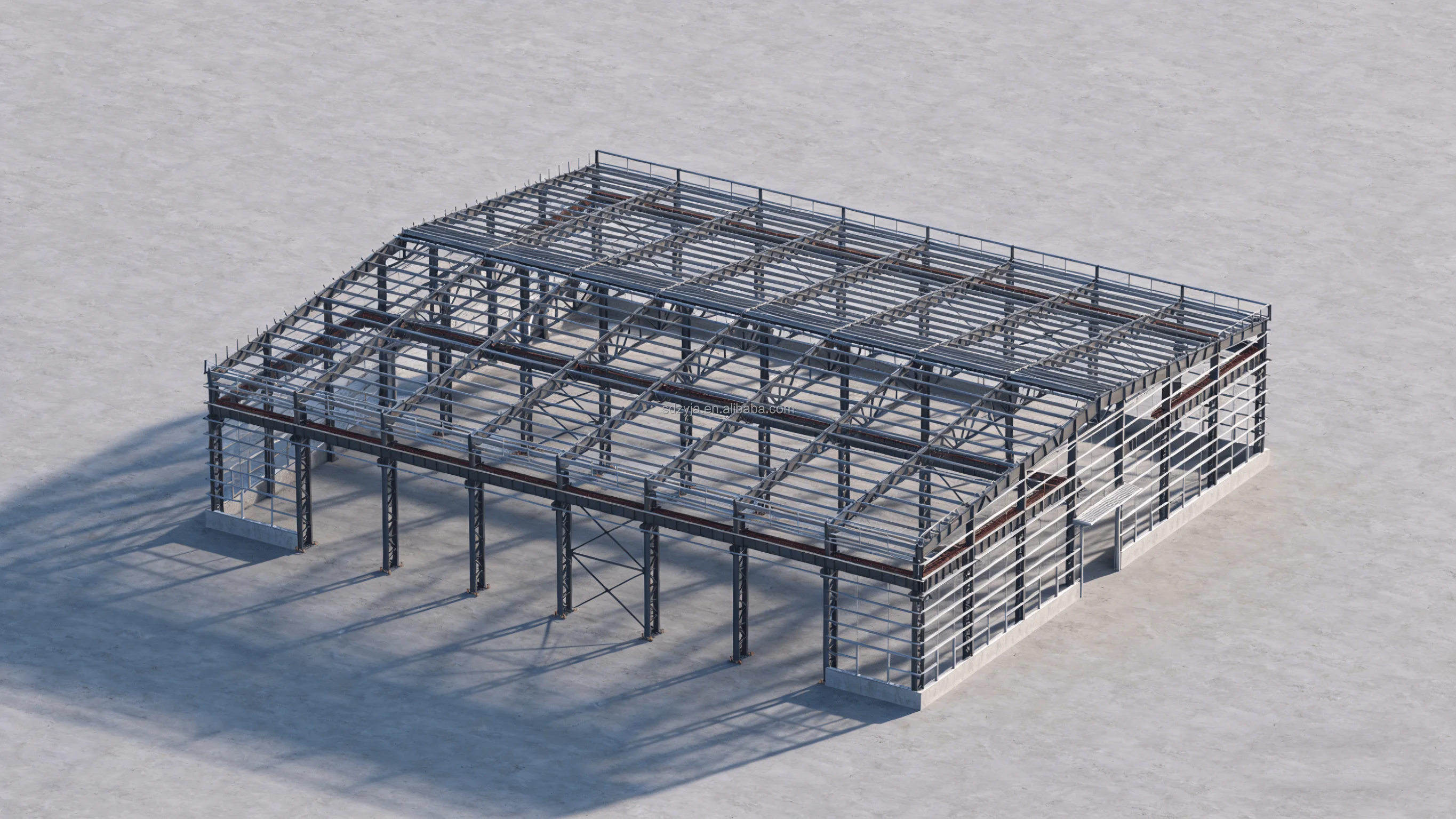

Our pre-engineered steel structure industrial buildings provide a complete design-build solution for large clear span workshops, featuring advanced corrosion-resistant treatment for long service life in harsh environments. As a turnkey design-build provider, we handle every stage of the project from initial concept through final construction.

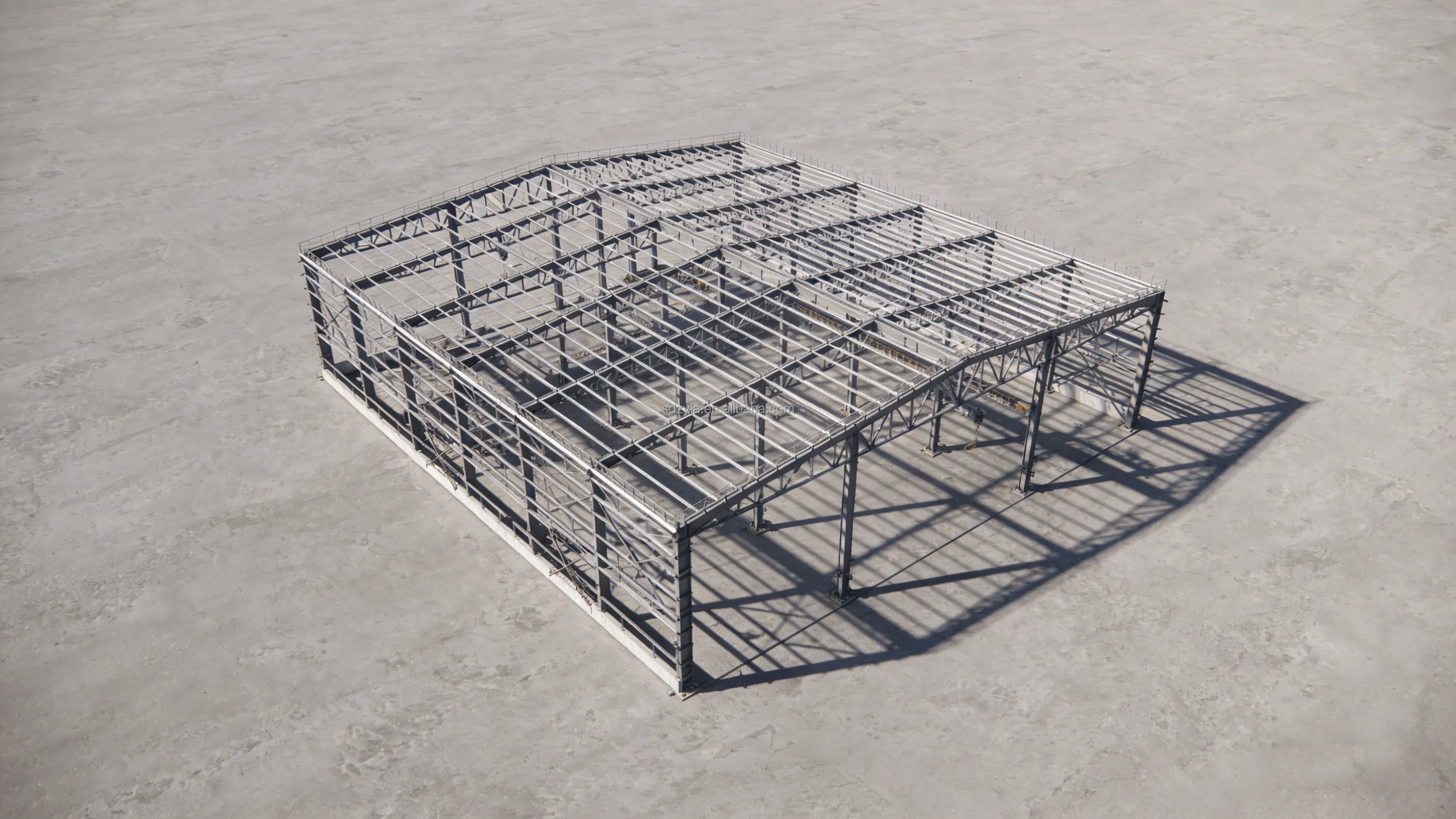

Clear spans up to 70m without interior columns, providing completely unobstructed interior space for any industrial operation, heavy equipment or production layout
Optimized tapered beam design: Computer-engineered tapered rafters minimize steel weight while maintaining required structural strength, reducing overall building cost
Flexible eave heights from 8m to 18m to accommodate tall equipment, high-bay storage and overhead crane systems up to 50t capacity
Modular bay design: 6m/7.5m/9m standard bay widths allow flexible length configuration to fit site dimensions and future expansion needs
Multi-layer corrosion protection: Steel components undergo shot blasting to Sa2.5 standard, followed by zinc-rich primer, epoxy intermediate coat and polyurethane topcoat for long-term corrosion resistance
Hot-dip galvanizing option: For highly corrosive environments (coastal areas, chemical plants, high-humidity regions), all main components can be hot-dip galvanized per ASTM A123 for 30+ year corrosion protection
Stainless steel fasteners: All exposed fasteners use 304 or 316 stainless steel to prevent fastener corrosion and staining
Corrosion-resistant cladding options: PVDF coated steel sheets or aluminum-zinc alloy coated sheets are available for extended cladding service life in corrosive environments
We provide single-source responsibility for the entire project, including architectural design, structural engineering, fabrication, delivery, installation guidance and post-construction support. This streamlined approach reduces project risk, shortens delivery timelines and ensures single-point accountability for project quality.
Parameter Category | Specific Indicators |
|---|---|
Steel Grade | Q235B, Q355B |
Applicable Standards | GB, ASTM, EN, JIS |
Anti-Corrosion Treatment | Sandblasting, primer, topcoat, hot-dip galvanized (optional) |
Construction Period Reduction | 40%-60% compared with concrete buildings |
Design Service Life | 50 years |
Processing Technology | CNC cutting, welding, drilling |
Recyclability | 100% recyclable |
Core Performance | Seismic resistance, wind resistance, snow load capacity |
Certifications | ISO, CE |
Supporting Systems | Roof, wall, door, window, ceiling, lighting, ventilation |
Shandong Zhongyue Steel Group Co., Ltd. specializes in customized prefabricated steel structures, offering Q235B, Q355B steel with 50-year service life, seismic resistance, and eco-friendly designs. Certified with ISO, CE, SGS, and compliant with GB, ASTM standards, the company ensures precision through high prefabrication rates and CNC processing.
We are a direct manufacturer with our own factory, design team, and construction team. We have rich experience in exporting steel structure buildings all over the world.
We mainly supply steel structure workshops and warehouses, steel structure apartments, villas, office buildings, pre-engineered steel buildings, and steel structure components including H beams, C/Z purlins, square tubes, steel columns and steel beams. We also provide one-stop turnkey solutions covering design, production, transportation and installation guidance.
Yes. All our steel structures are customized. We can design according to your land size and layout, required span, height and floor load, local climate (wind load, snow load, earthquake) and local building codes and standards.
Our steel structures comply with GB, ASTM, EN, JIS and other international standards, with complete ISO and CE certificates to meet global construction requirements.
For enterprise customers planning industrial construction projects, we provide tailored design schemes and detailed quotations based on your specific needs. Contact us to get free drawing design and professional technical consultation for your project.
