Steel Structure Workshop Building: Basic Knowledge and Comparison

1. Definition and Core Characteristics of Steel Structure Workshops

Asteel structure workshopis a building form that uses steel as the primary load-bearing material. The main framework consists of steel columns, steel beams, steel roof trusses, and other components, which are prefabricated in factories and assembled on site via welding or high-strength bolts.

Core advantages include:

1. Lightweight, High Strength, Large Span

Steel offers high strength with low self-weight, enabling large-span designs with few or no interior columns. It provides an open space ideal for equipment layout and production optimization. Seismic performance can reach Grade 8 (on the Chinese intensity scale), with excellent toughness and ductility.

2. Short Construction Period

Steel components are prefabricated in factories and simply hoisted and assembled on site. The construction period can be40–50% shorterthan traditional structures. Prefabrication rate can reach85%, and a 10,000 m² workshop can be delivered in as few as 45 days.

3. High Space Utilization

Steel columns have much smaller cross-sections than concrete columns, increasing usable floor area by about30%for the same footprint.

4. Green and Recyclable

Over90%of building materials can be recycled, and construction waste is reduced by more than70%.

5. Wide Applicability

Suitable for factories, warehouses, office buildings, gymnasiums, aircraft hangars, etc., for both single-story large-span buildings and multi-story workshops.

2. Components and Structural Systems

2.1 Main Components

A single-story steel structure workshop typically consists of the following components forming a spatial rigid frame:

2.2 Classification of Structural Systems

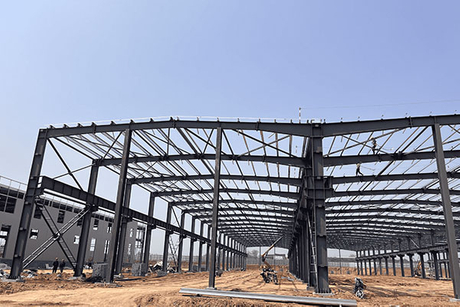

Among these, theportal frameis the most common type for industrial workshops due to its simple load path, fast construction, and economical span of 24–30 m.

3. Light Steel vs. Heavy Steel Structures

National codes do not strictly define “heavy steel.” The distinction is based on practical experience.

Light steel structuresgenerally refer to single-story, solid-web portal frames built according toTechnical Code for Steel Structure of Light-weight Building with Gabled Frames. The “light” refers mainly to the envelope material.

Practical reference indicators:

Note: The main difference lies in the envelope weight, not the structural weight itself.

4. Design Codes and Construction Process

4.1 Design Code

Steel structure workshops in China must comply withGB 50017-2017Standard for Design of Steel Structures(effective July 1, 2018, replacing GB 50017-2003). Key contents include: basic design requirements, material selection, structural analysis and stability design, flexural members, axial members, combined bending and axial members, connections and joints, fatigue and brittle fracture prevention, seismic performance-based design, and corrosion/fire protection.

The standard mandates that load-bearing steel must have guaranteed yield strength, tensile strength, elongation, sulfur and phosphorus content; welded structures additionally require guaranteed carbon equivalent.

4.2 Construction Process Flow

Quality control focuses on: structural deviation within tolerance, proper tightening of high-strength bolts, and roof waterproofing (overlaps and sealant).

5. Comprehensive Comparison of Workshop Structure Types

5.1 Performance and Parameter Comparison

5.2 Suitability by Structure Type

Steel structure workshopsare best for: logistics warehouses (12 m clear height, pallet racking), automotive manufacturing (large-span column-free space, 5-ton crane capacity), food/pharmaceutical (fast cleanroom retrofit), export-oriented manufacturing (tight deadlines).

Concrete frameis more suitable for: electronics assembly, food processing, light textile – small to medium production lines without heavy equipment; economical for buildings up to 7 stories.

Reinforced concreteis the backbone of heavy industry: machinery manufacturing (vibration), chemical production (corrosion resistance), precision instruments (vibration control).

Brick-concreteis only suitable for low-rise temporary buildings without cranes or heavy equipment – lowest structural performance and poor seismic behavior.

5.3 Limitations and Considerations for Steel Structures

1. Corrosion and fire protection: In corrosive environments (chemicals, electroplating), additional galvanizing or fireproof coatings are required. Proper treatment achieves a 50-year service life.

2. Temperature sensitivity: Steel’s thermal conductivity is about 40 times that of concrete. In extreme climates, additional insulation (e.g., 150 mm rock wool sandwich panels) may be needed.

3. Periodic maintenance: Routine inspection for loose or corroded components; roof waterproofing needs attention.

4. Steel price volatility: Quality steel materials are more expensive than concrete, but the shorter construction period often offsets this.

6. Decision Guidance

Steel and concrete are not mutually exclusive; hybrid structures (concrete core + steel frame) are common. When deciding, consider:

· If efficiency, space flexibility, and short schedule are priorities→ steel structure is often better.

· If building function may change→ steel is easier to modify.

· If function is fixed and long-term minimal maintenance is desired→ concrete is more robust.

· In environmentally regulated areas→ steel’s recyclability and green construction help with permits and green building ratings.

· On soft soil sites→ steel’s light weight significantly reduces foundation costs.

It is recommended to commission a professional multi‑option technical comparison before making a final decision, balancing initial investment, operational requirements, and lifecycle performance.
