Temperature-sensitive storage leaves zero margin for error. A single thermal failure results in catastrophic product loss, regulatory fines, and compounding energy costs. Standard commercial buildings fail to handle extreme internal-external temperature differentials. Steel is highly conductive. Standard construction methods inevitably create thermal bridges, condensation, and vapor leaks. Unprotected steel frames pull exterior heat directly into refrigerated spaces, forcing refrigeration systems to run continuously. Designing a high-performance facility requires treating the building envelope and the structural frame as an integrated system. The structural grid must support heavy insulation without compromising airtightness. This guide breaks down the engineering criteria, insulation evaluation frameworks, financial considerations, and implementation risks for designing a purpose-built insulated facility. You will learn how to align structural load demands with strict thermal performance requirements.
Continuous Envelope Integrity: Success relies on isolating the conductive steel frame from the exterior environment using continuous insulation and strict vapor barriers.
Structural Load Demands: The steel frame must be engineered to support heavier loads than standard buildings, including insulated metal panels (IMPs), heavy cold-storage doors, rooftop refrigeration units, and complex ductwork.
Thermal Bridging Mitigation: Eliminating metal-to-metal contact between the interior and exterior is the most critical design mandate to prevent condensation and energy loss.

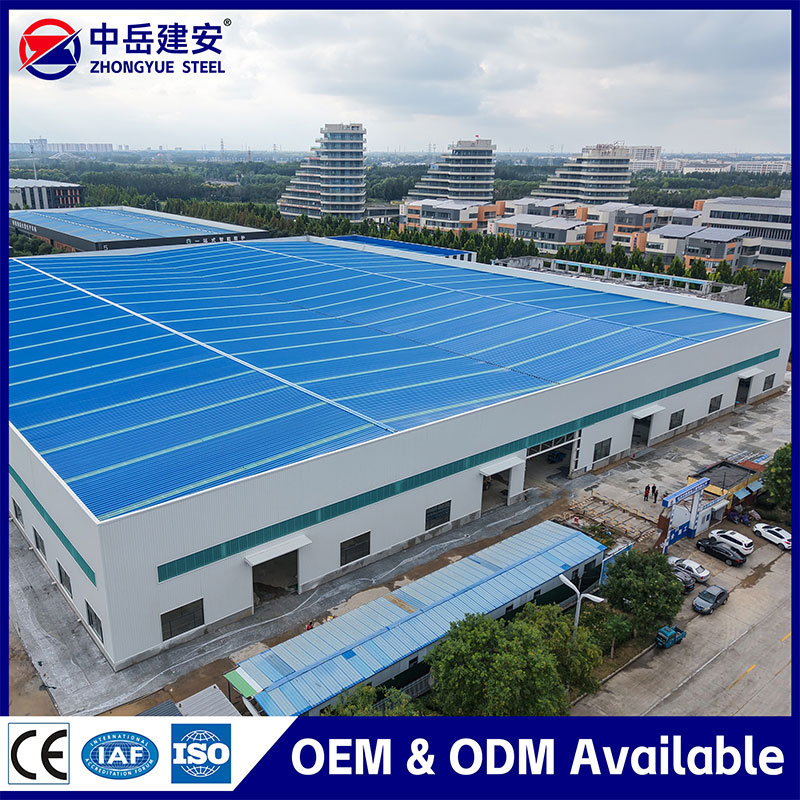

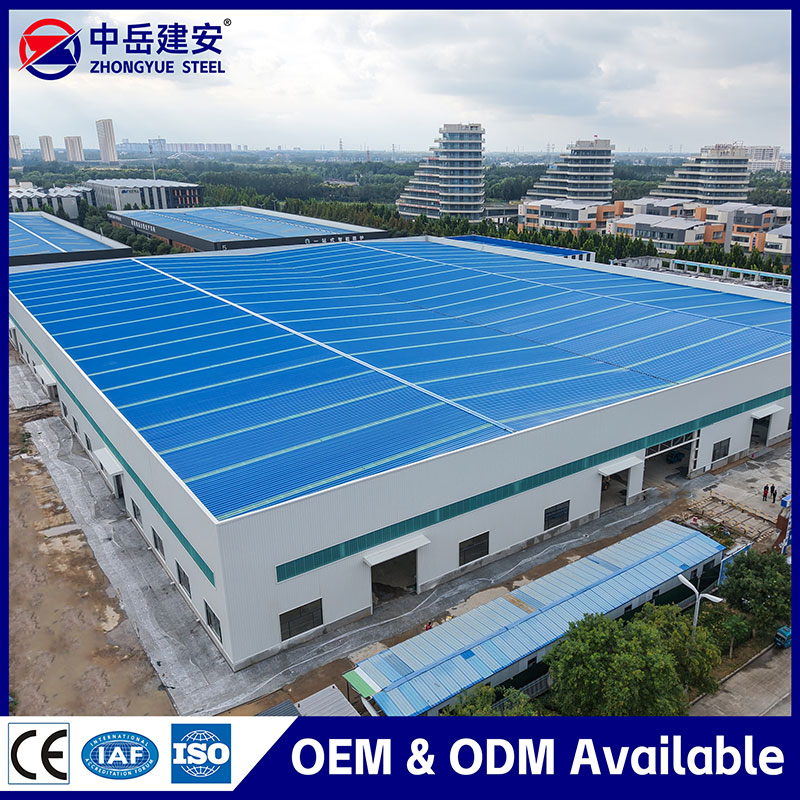

Prefabrication Advantages: Utilizing a prefabricated steel warehouse model can tighten construction tolerances, ensuring better panel alignment and a more airtight envelope.
A successful facility begins with precise environmental baselines. You cannot engineer the structural frame until you define the exact thermal demands of the interior space. Different storage zones require vastly different structural and insulation approaches.
Define your required internal temperature zones immediately. Facilities often require ambient, cooler, freezer, or blast freezer areas under one roof. Each zone demands specific insulation thicknesses and structural detailing. Calculate the necessary R-values and U-values based on regional climate data. A facility in a hot, humid climate faces different vapor pressures than one in a dry, cold region.
Mandate a strict dew point analysis during the design phase. This analysis determines exactly where condensation is likely to form within the wall assembly. Moving the dew point outside the structural cavity is non-negotiable. If condensation forms on the steel frame, corrosion accelerates rapidly. Proper vapor control dictates the long-term viability of any temperature controlled warehouse.
To establish accurate baselines, project engineers typically categorize spaces into distinct thermal zones. Each zone dictates the required panel thickness and the corresponding structural support needed to carry that panel weight.
Storage Zone | Target Temperature Range | Minimum Recommended R-Value | Typical IMP Thickness |
|---|---|---|---|
Ambient / Dry Goods | 50°F to 70°F | R-15 to R-20 | 2 to 3 inches |
Cooler / Chill Space | 32°F to 38°F | R-25 to R-30 | 4 inches |
Freezer | -10°F to 0°F | R-40 to R-45 | 5 to 6 inches |
Blast Freezer | -40°F to -20°F | R-50+ | 6 to 8 inches |
Evaluate all design requirements for FDA, USDA, or GMP compliance early. These regulations govern food, beverage, and pharmaceutical storage facilities. Compliance dictates the types of materials you can expose to the interior environment.
Identify washdown requirements before finalizing the structural design. Food processing and storage areas often require harsh chemical washdowns. These cleaning protocols dictate the need for highly corrosion-resistant structural components. You must specify sanitary panel finishes that resist bacterial growth. The structural frame must avoid horizontal ledges where dust or moisture can accumulate.
When designing for strict compliance, follow these sequential steps:
Review local health department and federal guidelines for food-safe surfaces.
Select interior panel coatings that withstand high-pressure, high-temperature chemical spraying.
Design structural columns with sloped base plates to prevent water pooling during washdowns.
Specify stainless steel or heavily galvanized fasteners for all exposed interior connections.
Ensure all panel joints utilize USDA-approved non-porous sealants.
The structural skeleton must do more than hold the building up. It must actively support the thermal envelope without piercing it. Standard steel framing practices often fail in cold storage applications because they ignore thermal bridging.
Specify robust H-beam main frames capable of supporting high-performance building envelopes. Thick insulated panels weigh significantly more than standard single-skin metal cladding. The main frame must handle this increased dead load without excessive deflection.
Calculate point loads meticulously for heavy, ceiling-hung refrigeration equipment. Evaporators hold substantial weight, especially when filled with refrigerant and potential ice buildup. Specialized fire suppression systems also add significant overhead weight. You must engineer specialized secondary framing around heavy cold-storage doors and dock areas. These areas endure constant dynamic loads and heavy vibrations from forklift traffic.
Purlins and girts provide secure connections for thick insulated panels. They must maintain strict deflection limits, typically L/240 or L/360 for insulated metal panels. If the secondary framing flexes too much under wind loads, the insulated panel joints will rupture. A properly engineered steel structure warehouse handles these dynamic stresses effortlessly while maintaining a perfect seal.
Engineers must account for several specific load factors during the design phase:
Collateral loads from heavy-duty insulated ceiling panels suspended from the roof structure.
Dynamic wind loads acting on thick exterior wall panels, transferring stress to the girts.
Vibrational loads from rooftop condenser units transferring through the structural grid.
Snow loads compounded by the lack of heat escaping through the highly insulated roof.
Identify common failure points where steel carries external temperatures straight through the wall. Roof curbs, base plates, and door jambs are notorious for thermal bridging. If exterior steel touches interior steel, heat bypasses the insulation completely.
Evaluate structural thermal break materials carefully. Use heavy-duty structural plastics, dense polyurethane blocks, or specialized shims. Place these thermal breaks strategically between the exterior cladding and the steel frame. Eliminating metal-to-metal contact prevents severe condensation issues. Even small thermal bridges cause localized freezing, leading to dangerous ice accumulation on interior floors.
Assess the absolute necessity of galvanized steel parts. High-humidity zones or areas requiring chemical washdowns demand hot-dip galvanization. Standard primed steel rusts quickly in these aggressive environments.
Design ventilation and airflow pathways to prevent micro-climates. Trapped moisture near structural connections causes rapid oxidation. Ensure HVAC systems maintain proper air circulation across all exposed steel surfaces. Keep the humidity levels below the threshold where condensation can form on the cold steel components.
Selecting the right insulation system dictates the operational efficiency of the facility. The insulation must provide high thermal resistance while acting as an impenetrable barrier against air and moisture infiltration.
Evaluate the performance of factory-foamed sandwich panels carefully. IMPs feature rigid PUR (polyurethane) or PIR (polyisocyanurate) cores injected between two steel skins. They offer single-step installation and an exceptionally high R-value per inch. IMPs also include built-in vapor barriers, simplifying the construction process.
Compare this to traditional built-up systems. Built-up systems involve multi-layer complexity, including separate exterior cladding, fiberglass batts, vapor barriers, and interior liner panels. Fiberglass or mineral wool carries significant long-term settling risks. If the insulation sags, voids form at the top of the wall cavity, destroying thermal efficiency.
IMPs generally offer superior airtightness and installation speed for cold storage applications. Built-up systems might suffice for mildly climate-controlled dry goods, but they fail rapidly in freezer environments. Proper steel warehouse insulation requires materials that maintain their structural and thermal integrity over decades of use.
Feature | Insulated Metal Panels (IMPs) | Built-Up Insulation Systems |
|---|---|---|
Installation Speed | Fast (Single-step process) | Slow (Multi-layer installation) |
R-Value Consistency | High (Rigid core does not settle) | Variable (Prone to sagging over time) |
Vapor Barrier Integrity | Excellent (Built into the steel skins) | Moderate (Relies on taped seams) |
Airtightness | Superior (Interlocking joints) | Average (Multiple penetration points) |
Moisture Resistance | High (Closed-cell foam repels water) | Low (Fiberglass absorbs moisture) |
Define the strict requirements for a continuous vapor retarder. You must place this barrier on the warm side of the insulation. In cold storage, the warm side is usually the exterior of the building. Vapor drive pushes moisture from the warm exterior toward the cold interior. For freezer applications, specify materials with a perm rating of 0.01 or less.
Evaluate joint sealing mechanisms thoroughly. Use high-grade butyl sealants, interlocking panel joints, and vapor-tight fasteners. Air leaks destroy thermal efficiency faster than poor insulation. A single unsealed panel joint allows massive amounts of moisture to enter the freezer space. This moisture instantly turns to ice, damaging equipment and creating safety hazards.
Achieving a perfect vapor seal requires strict field execution:
Apply continuous beads of non-skinning butyl sealant along all panel joints before engagement.
Utilize concealed fastener systems to minimize penetrations through the exterior steel skin.
Seal all base channels and floor transitions with heavy-duty urethane caulking.
Inspect all penetrations for plumbing or electrical conduits and seal them with expanding foam and vapor tape.
Analyze the impact of roof reflectivity on the overall cooling load. Cool roofs utilize highly reflective membranes like TPO or PVC. These membranes reflect solar radiation, significantly reducing the heat absorbed by the building.
Evaluate the integration of insulation at the roof-to-wall transition. This junction historically represents the highest risk area for severe air leakage. The wall vapor barrier must tie seamlessly into the roof vapor barrier. Any gap in this transition allows warm air to bypass the insulation entirely. Specify thermal blocks over the roof purlins to prevent the standing seam roof clips from creating a thermal bridge.
Designing a high-performance facility requires balancing initial capital investments with long-term operational efficiency. Selecting the right construction partners ensures the design translates accurately to the field.
Compare the upfront capital expenditure of premium insulation systems against long-term operational savings. High-performance IMPs require a larger initial investment than fiberglass batts. However, the resulting airtight envelope drastically reduces daily energy consumption.
Reduced energy usage yields substantial returns over the lifespan of the building. Furthermore, a highly efficient envelope reduces the wear and tear on expensive HVAC and refrigeration equipment. Analyze the financial impact of construction speed. Utilizing an insulated steel warehouse system accelerates occupancy compared to traditional masonry or tilt-up concrete. Faster project completion means you can begin operations and generate revenue much sooner.
Establish strict criteria for selecting contractors and engineers. Emphasize verifiable portfolios in thermodynamics, vapor barrier detailing, and cold storage steel erection. General commercial construction experience is simply not enough for temperature-sensitive facilities.
Demand proven expertise in mitigating thermal bridging. Ask potential partners how they handle roof-to-wall transitions and dock door framing. If they cannot clearly explain their vapor barrier continuity strategy, find another partner. Precision in the field dictates the success of the entire engineering effort.
When interviewing potential builders, verify their experience with the following:
Erecting heavy-gauge steel frames designed specifically for high-load IMPs.
Executing continuous vapor barrier tie-ins at complex roof-to-wall junctions.
Installing sub-slab heating systems and under-floor rigid insulation.
Coordinating with industrial refrigeration contractors to support heavy evaporator units.
Prefabrication offers distinct advantages for temperature-controlled environments. Factory-controlled manufacturing ensures precise component fitment, which is critical for maintaining an airtight envelope.
Factory-machined tolerances in pre-engineered buildings prevent the gaps and misalignments that plague traditional construction. CNC machinery cuts and drills steel components to exact specifications.
When the steel frame aligns perfectly, the insulated panels attach flush against the girts. A prefabricated steel warehouse eliminates on-site modifications that often compromise structural integrity. This exact fitment prevents the panel warping that causes seal failures and air leaks. The result is a highly airtight envelope capable of maintaining extreme temperature differentials.
Weigh the rapid deployment of prefabricated systems against highly customized operational needs. Modern logistics facilities often utilize Automated Storage and Retrieval Systems (ASRS). These automated systems require highly specific structural grids and immense load-bearing capabilities.
Prefabricated frames can accommodate these complex requirements while maintaining fast erection times. Engineers can customize the pre-engineered framework to support heavy racking systems directly. This integration saves time and ensures the structural grid aligns perfectly with the automated machinery.
Design the initial steel frame with expandable end-walls. Cold storage demands often grow rapidly. You need the ability to expand the facility without disrupting existing temperature-controlled zones.
Plan for scalability during the initial engineering phase. Specify bolted connections at the end-walls rather than welded joints. This allows construction crews to remove the end-wall panels, extend the main frame, and seamlessly integrate the new insulation envelope. Future expansion should never compromise the existing vapor barrier.
To execute a seamless expansion, follow these structural guidelines:
Design the final structural bay with full-load capacity frames rather than half-load end-wall frames.
Install temporary vapor barrier tie-offs that can be easily unsealed and extended.
Ensure the foundation extends slightly past the exterior wall to accommodate future slab tie-ins.
Route refrigeration lines and electrical conduits with capped extensions for future zones.
Constructing a cold storage facility involves unique physical risks. Failing to address extreme temperature differentials leads to structural damage and massive energy losses.
Sub-zero internal temperatures pose a severe risk to the concrete foundation. The extreme cold can penetrate the floor slab and freeze the soil beneath the building. When soil moisture freezes, it expands. This expansion causes the foundation to heave, cracking the concrete slab and warping the steel frame above.
Mitigate this risk by specifying rigid under-floor insulation, typically Extruded Polystyrene (XPS). Furthermore, you must install sub-slab heating systems for freezer applications. Glycol loops or forced air systems circulate warmth beneath the insulation layer. This prevents the subsoil from ever reaching freezing temperatures. Install temperature sensors within the soil to monitor the system's effectiveness continuously.
Loading and unloading operations invite massive energy loss. Moisture intrusion is a constant threat at dock doors. Every time a truck backs up to the facility, the thermal envelope is temporarily broken.
Design specialized dock pits to minimize this exposure. Specify vertical-storing dock levelers instead of traditional pit levelers. Vertical levelers allow the insulated dock door to seal tightly against the concrete floor. Implement high-speed insulated roll-up doors to minimize the time the interior space is exposed to the outside climate. Install robust dock seals and shelters to create a tight perimeter around the truck trailer.
Dock Leveler Type | Thermal Seal Quality | Suitability for Cold Storage |
|---|---|---|
Pit-Style Leveler | Poor (Creates gaps under the door) | Not Recommended |
Edge-of-Dock Leveler | Moderate (Limited operating range) | Acceptable for Ambient Zones |
Vertical-Storing Leveler | Excellent (Door seals directly to the pit floor) | Highly Recommended for Freezers |
Ductwork routing often conflicts with steel cross-bracing or heavy primary frames. These clashes lead to compromised airflow or dangerous on-site structural modifications. Cutting a steel brace to fit a duct destroys the structural integrity of the building.
Utilize 3D Building Information Modeling (BIM) during the design phase. BIM allows engineers to coordinate the steel detailing with the mechanical, electrical, and plumbing (MEP) designs prior to fabrication. Clash detection software identifies physical conflicts in the digital model. You can reroute ductwork or adjust bracing locations long before the steel arrives at the construction site.
Initiate a comprehensive facility needs assessment focusing strictly on energy modeling and specific thermal targets.
Execute precise structural load calculations tailored for heavy rooftop refrigeration equipment and thick insulated metal panels.
Conduct a preliminary geotechnical review to design a foundation capable of resisting frost heave in freezer zones.
Select a specialized design-build partner with a verified portfolio in cold storage thermodynamics and vapor barrier detailing.
Implement 3D BIM clash detection to coordinate complex HVAC ductwork with the primary and secondary steel framing.
A: Insulated Metal Panels (IMPs) are generally the best choice for temperature-controlled facilities. They provide an exceptionally high R-value per inch, a built-in vapor barrier, and rapid installation. Their rigid foam core prevents the settling, sagging, and moisture absorption issues commonly associated with traditional fiberglass insulation.
A: Preventing condensation requires installing a continuous vapor barrier on the warm side of the insulation envelope. You must also eliminate thermal bridging by using structural thermal breaks between the exterior cladding and the conductive steel frame. Proper HVAC ventilation further reduces interior moisture buildup.
A: Temperature-controlled buildings require a significantly higher initial capital investment due to thick insulated panels, specialized thermal breaks, and heavy-duty structural framing. However, this upfront expenditure is offset by drastically lower daily energy consumption and reduced wear on refrigeration equipment over the lifespan of the facility.
A: Yes, but it requires significant structural and thermal upgrades. Engineers must evaluate the existing frame to ensure it can support the added dead weight of thick insulated panels and ceiling-hung refrigeration equipment. You must also install a completely seamless vapor barrier and extensive thermal breaks.
A: Thermal breaks are specialized insulating materials placed between conductive steel components to interrupt the heat transfer path. In a prefabricated building, heavy-duty plastic shims or dense polyurethane blocks are installed between the exterior panels and the steel frame, preventing outside temperatures from reaching the interior.
A: Freezer buildings typically require an R-value between R-30 and R-50 for walls, and R-40 to R-60 for roofs. The exact requirement depends heavily on the specific internal temperature target, external regional climate conditions, and local energy efficiency codes.
A: Cold storage doors are significantly heavier due to thick internal insulation and robust sealing mechanisms. The steel framing around these doors requires specialized secondary reinforcement to handle dynamic loads, constant forklift vibration, and strict thermal break detailing to prevent frost buildup around the jambs.
