Industrial construction projects face intense pressure from aggressive launch dates, volatile material costs, and strict environmental targets. Selecting the right structural framework dictates project return on investment, risk exposure, and lifecycle maintenance. Choosing the wrong structural methodology leads to scope creep, timeline blowouts, and compromised facility utility. You cannot afford to guess when millions of dollars are on the line.
This guide provides an objective, evidence-based technical comparison between pre-engineered and conventional steel structures to facilitate a definitive procurement decision. Facility owners, developers, and engineers need clear data to navigate these complex choices. By evaluating timelines, engineering mechanics, and operational outcomes, you can align your structural choice directly with your industrial facility requirements. We will break down the exact differences in fabrication, assembly, and long-term performance.
Timeline Predictability: Pre-engineered systems shift complexity from the job site to the factory floor, utilizing standardized plans to compress construction schedules by 30–50% (often reducing erection time from months to weeks) compared to conventional methods.
Cost Control vs. Customization: Conventional steel offers unconstrained architectural freedom and heavy-load customization, whereas pre-engineered systems optimize costs through standardized engineering and reduced material waste.
Clear-Span Capabilities: For facilities requiring a large span steel building without interior support columns (e.g., aviation, warehousing), pre-engineered structures offer superior weight-to-strength ratios.
Risk Profile: The primary risk in pre-engineered builds is the inflexibility of late-stage design changes; conventional builds carry higher risks of on-site labor delays, weather-related disruptions, and budget overruns.

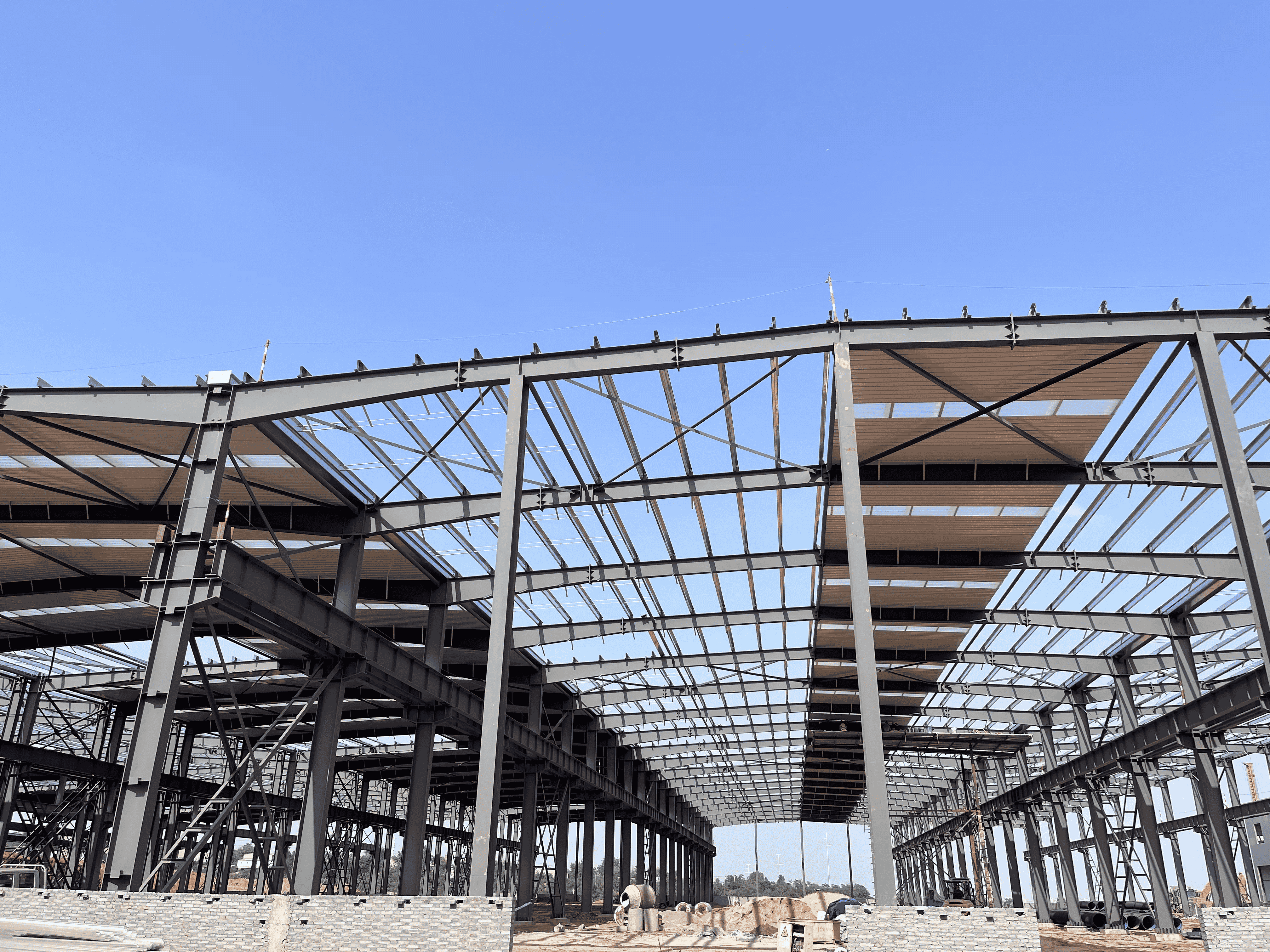

The pre-engineered methodology relies on structural systems designed and fabricated by a single manufacturer. These systems utilize custom-tapered built-up sections. Engineers optimize these sections for specific load requirements. Instead of using uniform steel beams, the manufacturer tapers the steel, placing more mass only where stress points dictate. This precise engineering defines the modern pre-engineered steel structure.
Manufacturers rely heavily on advanced CAD and BIM software. These digital tools utilize modular templates to pre-calculate weight, stress distribution, and material efficiency. Every bolt hole, weld, and splice plate is detailed before manufacturing begins. This digital-first approach ensures components fit perfectly upon arrival at the job site. It eliminates the guesswork traditionally associated with heavy industrial framing.
The primary framing consists of rigid frames, which include tapered columns and rafters. These elements bear the main structural loads and transfer them to the foundation. Secondary framing includes Z-purlins for the roof and C-girts for the walls. These lighter gauge, cold-formed steel members support the exterior cladding and transfer wind or seismic loads back to the primary rigid frames. Because the manufacturer designs all these components as an integrated system, they function together with maximum efficiency.
Roofing and wall panels complete the envelope. Manufacturers often supply these as part of the package, ensuring exact compatibility with the secondary framing. Standing seam metal roofs are common, utilizing concealed fasteners that allow the roof to expand and contract with temperature changes. This integrated approach means you source the entire building shell from one entity, streamlining the procurement process.
Conventional steel construction utilizes standard hot-rolled steel sections. These include familiar T-shapes, C-shapes, and I-beams milled to standard dimensions. Fabricators cut these heavy sections to specific lengths based on bespoke architectural drawings. Assembly happens entirely on-site, requiring extensive field coordination. The sheer weight of hot-rolled steel provides immense structural rigidity but demands heavy lifting equipment.
This methodology operates through a decentralized network. A conventional project requires separate architects, structural engineers, and steel fabricators. This fragmentation heavily impacts project management. Communication silos often form between the design team and the fabrication floor. Steel building fabrication in this context becomes a multi-step, multi-vendor process. Any discrepancy between the engineer's blueprint and the fabricator's shop drawings must be resolved in the field, often causing delays.
Connections in conventional steel rely heavily on field welding and heavy bolting. Ironworkers must often weld moment connections on-site to ensure structural stability. This requires certified welders, specialized equipment, and favorable weather conditions. If rain or high winds hit the job site, welding stops, and the schedule slips. Furthermore, conventional steel relies on uniform beam sizes. If a beam needs to support a high load at its center, the entire beam must be sized for that maximum load, resulting in excess steel weight at the ends where the stress is lower.
The procurement process for conventional steel involves buying raw steel by the ton from a mill, shipping it to a fabricator for cutting and drilling, and then shipping it again to the job site. This multi-leg supply chain introduces multiple points of potential failure, from mill delays to fabrication errors.
Single-source engineering expedites the permitting process. Pre-engineered systems utilize standardized structural blueprints and pre-approved modular plans. Local municipalities often process these familiar designs faster. The manufacturer stamps the drawings, assuming full liability for the structural envelope. Conversely, conventional steel requires multi-phase, bespoke engineering. The architect designs the layout, the structural engineer calculates the loads, and local authorities must review the unique calculations from scratch.
Design revisions impact these two methods differently. Pre-engineered systems heavily penalize late-stage changes. Once the factory begins rolling and cutting the tapered beams, altering a load requirement causes significant financial and schedule setbacks. Conventional steel offers more iterative flexibility during the drafting phase. Because the materials are standard hot-rolled shapes, engineers can modify connections or add reinforcement relatively late in the design process.
The software used in these processes also differs. Pre-engineered manufacturers use proprietary software that automatically generates shop drawings, bill of materials, and CNC machine codes directly from the 3D model. Conventional engineering relies on general-purpose structural analysis software, requiring manual translation into shop drawings by a separate detailer. This manual handoff increases the risk of drafting errors.
Timeline reduction remains the most significant advantage of pre-fabrication. A prefabricated steel building achieves this through parallel processing. While site crews grade the land and pour the concrete foundation, the factory simultaneously manufactures the steel frame. The components arrive on-site exactly when the foundation cures. This overlap compresses the overall project schedule drastically.
On-site labor requirements differ fundamentally. Pre-engineered systems utilize rapid, bolt-together assembly. Components arrive pre-cut, pre-drilled, and pre-painted. General assembly crews can erect the frame using basic hand tools and standard cranes. Conventional builds require extensive on-site welding, cutting, and modification. Highly skilled welders must fuse the heavy I-beams together in the field. Weather conditions frequently disrupt this field welding, pushing schedules backward.
The erection sequence for a pre-engineered frame is highly systematized. Crews start with a braced bay to establish stability, then systematically add subsequent frames, purlins, and girts. The parts are numbered and correspond directly to an erection manual provided by the manufacturer. Conventional erection is often more ad-hoc, requiring field decisions on connection sequencing and temporary bracing.
Industrial facilities often require massive open floor plans. When specifying a large span steel building, pre-engineered systems excel. They achieve clear spans up to 300 feet without interior support columns. The tapered structural members make this possible. By reducing steel weight in low-stress areas, the frame supports its own dead load more efficiently across wide distances. This column-free space is vital for aircraft hangars, logistics hubs, and manufacturing floors.
Conventional steel proves superior for highly complex geometries. Multi-story industrial facilities benefit from the uniform strength of hot-rolled I-beams. Heavy point-load requirements also favor conventional methods. If a facility requires massive bridge cranes, suspended mezzanines, or heavy rooftop HVAC units, conventional steel provides the necessary rigid support. It accommodates non-linear architectural footprints that factory templates cannot easily replicate.
Consider a heavy manufacturing plant requiring multiple 50-ton overhead bridge cranes operating on the same runway. The dynamic loads, braking forces, and vibrations generated by these cranes require massive, uniform steel columns. Conventional hot-rolled steel handles these extreme, unpredictable stresses better than tapered built-up sections. However, for a standard distribution center requiring maximum rack space and forklift maneuverability, the clear-span capability of a pre-engineered frame is unmatched.
Cost-per-square-foot variables depend heavily on material optimization. Pre-engineered systems use significantly less steel by weight. The tapered design eliminates redundant material. This efficiency counters the premium often associated with standard hot-rolled steel tonnage. Conventional builds purchase steel by the ton, meaning you pay for excess mass that does not actively contribute to load-bearing efficiency.
Foundation costs also reflect this weight difference. A lighter overall structural frame exerts less downward force on the concrete footings. Engineers can design shallower, less resource-intensive foundations for pre-engineered frames. Conventional heavy steel requires massive, deep concrete footings to support the sheer dead weight of the hot-rolled beams. This difference directly impacts early-stage civil engineering budgets.
Furthermore, the predictability of CapEx is higher with pre-engineered systems. Because the manufacturer provides a fixed price for the entire structural envelope based on the initial design, project managers face fewer surprise material cost escalations. Conventional steel projects are subject to market fluctuations during the multi-stage procurement process, making budget overruns more common.
Factory-controlled fabrication minimizes scrap metal. Computer-guided plasma cutters slice steel plates with exact precision. The factory recycles any offcuts immediately. On-site fabrication generates substantial unrecoverable waste. Field modifications, miscuts, and weather damage lead to discarded steel sections. This waste directly inflates the project's material budget.
Labor dynamics heavily influence budget predictability. Conventional builds rely on highly specialized on-site labor, including certified structural welders and ironworkers. Local labor shortages can stall a conventional project indefinitely. Pre-engineered systems shift the labor burden to general assembly crews. Bolting steel together requires fewer specialized certifications. This shift mitigates local labor shortage risks and keeps assembly costs predictable.
The reduction in heavy equipment rental also plays a role. While both methods require cranes, conventional steel's heavier components often demand larger, more expensive cranes on-site for longer durations. Pre-engineered components are lighter, allowing for smaller, more cost-effective lifting equipment and shorter rental periods.
Environmental impact is a primary concern for modern developers. A pre-engineered frame inherently reduces embodied carbon. Precise material optimization means the facility uses only the exact amount of steel required to meet local building codes. Less steel manufactured equals fewer carbon emissions during the smelting process. Transportation emissions also drop because the shipped components weigh less.
Factory environments handle recycling efficiently. Scrap generated during manufacturing goes straight back into the supply chain. Conventional builds struggle with site waste management. Dumpsters fill with steel offcuts, packaging, and consumable welding materials. Achieving strict ESG compliance is mathematically easier when utilizing a highly optimized, factory-produced structural envelope.
Additionally, steel is highly recyclable. Both systems benefit from this, but pre-engineered manufacturers often source steel coils with high recycled content. When the building reaches the end of its useful life, the bolted connections of a pre-engineered frame make it easier to dismantle and recycle compared to a heavily welded conventional structure.
Long-term maintenance requirements dictate the true value of an industrial facility. A pre-engineered steel building typically comes with standard, comprehensive warranties from a single manufacturer. If the roof leaks or a panel degrades, you contact one vendor. Conventional builds feature fragmented warranties. The steel fabricator, the roofing contractor, and the cladding supplier all issue separate guarantees, often pointing fingers when defects arise.
Energy efficiency integration is seamless in modern pre-fabrication. Manufacturers design frames to accept insulated metal panels (IMPs) perfectly. These panels provide superior thermal resistance compared to traditional built-up cladding systems. The precise fit of factory components reduces air infiltration, lowering long-term heating and cooling demands for large industrial volumes.
Paint systems also impact long-term value. Pre-engineered components receive factory-applied coatings under controlled conditions. This ensures uniform thickness and optimal adhesion, preventing rust and corrosion. Conventional steel is often primed in the shop but requires field painting after erection. Field painting is subject to humidity, dust, and temperature variations, which can compromise the coating's integrity and lead to premature corrosion.
Transportation bottlenecks pose a significant risk for prefabricated components. Large, tapered columns and massive roof rafters must travel from the factory to the site via flatbed trucks. Oversized load permits, highway restrictions, and driver shortages can delay delivery. If the steel does not arrive in the correct sequence, the assembly crew stands idle.
Strategic staging mitigates this logistical risk. Project managers must secure early procurement lock-ins to guarantee factory production slots. Auditing the manufacturer's delivery track record is essential. Establish a designated laydown yard on-site to receive and organize steel components days before erection begins. This buffer absorbs minor transit delays without impacting the assembly schedule.
The shake-out process is critical here. When trucks arrive, crews must unload and organize the steel logically. Placing roof purlins on top of primary columns in the laydown yard forces double-handling. Proper staging ensures the erection crew has immediate access to the correct parts in the exact sequence required by the assembly manual.
Pre-engineered systems demand strict anchor bolt and foundation tolerances. Because the steel components arrive pre-drilled, they must align perfectly with the concrete foundation bolts. A minor concrete error—even a fraction of an inch—can halt assembly. The crew cannot easily modify a tapered, pre-engineered column in the field to fix a concrete contractor's mistake.
Mandating stringent third-party surveying prevents these costly halts. Quality control teams must verify anchor bolt placement before the concrete cures. Conventional steel offers more forgiveness in this area. Ironworkers can often field-weld or cut hot-rolled steel to accommodate slight foundation variations. However, relying on field modifications compromises structural integrity and slows progress.
Using anchor bolt templates during the concrete pour is a mandatory mitigation strategy. These rigid templates hold the bolts in the exact configuration required by the manufacturer's drawings. If a bolt is misplaced, the only solution for a pre-engineered frame is often expensive epoxy retrofitting or custom-fabricating a new base plate, both of which destroy the timeline advantage.
Facility expansion requires careful foresight. Prefabricated structures scale linearly with ease. You can easily add new bays to expandable endwalls. Removing the end cladding and bolting on new rigid frames extends the building length seamlessly. However, these structures remain rigid regarding ad-hoc interior load modifications. You cannot simply hang a new five-ton crane from a roof rafter engineered only for snow loads.
Mitigate this constraint through proactive design. Over-engineer specific bays during the initial drafting phase to accommodate future suspended equipment. Always specify expandable endwalls if future growth is possible. If you anticipate frequent, unpredictable facility repurposing with heavy dynamic loads, conventional steel provides the necessary brute strength for ad-hoc modifications.
When planning for expansion, consider the roof profile. Continuing a single-slope roof is straightforward, but adding a lean-to structure to the side of an existing pre-engineered building requires verifying that the original main columns can handle the additional snow drift and wind loads generated by the new attachment.
Evaluation Metric | Pre-Engineered Steel | Conventional Steel |
|---|---|---|
Construction Speed | 30-50% faster; parallel site/factory work. | Slower; sequential on-site fabrication. |
Clear Span Ability | Excellent (up to 300 ft without columns). | Limited; requires heavy interior columns. |
Design Flexibility | Rigid once manufacturing begins. | High; accommodates field modifications. |
Labor Requirements | General assembly crews (bolting). | Specialized certified welders. |
Heavy Point Loads | Requires early custom engineering. | Naturally suited for heavy dynamic loads. |
Foundation Costs | Lower; lighter structural dead weight. | Higher; requires massive concrete footings. |
Material Waste | Minimal; factory-optimized cutting. | Higher; on-site offcuts and modifications. |
Specify pre-engineered systems for projects requiring rapid speed-to-market. Warehouses, logistics hubs, and standard manufacturing plants benefit immensely from compressed schedules. Facilities demanding wide, column-free interiors should default to this method. Furthermore, if your budget requires strict CapEx predictability, low material waste, and high sustainability metrics, factory-optimized steel is the logical choice.
Logistics and Distribution Centers: Require massive clear spans for racking and forklift traffic.
Aviation Hangars: Demand wide, column-free spaces for aircraft maneuverability.
Agricultural Storage: Need cost-effective, rapid deployment for seasonal crop storage.
Standard Manufacturing: Benefit from linear scalability and predictable construction timelines.
Conventional steel remains mandatory for heavy industrial facilities with extreme dynamic loads. Steel mills, heavy equipment manufacturing floors, and facilities with massive suspended machinery require hot-rolled strength. Multi-story structures exceeding typical height limitations rely on conventional framing. Finally, projects requiring highly customized, irregular architectural footprints that defy modular templates must utilize bespoke conventional steel.
Heavy Foundries and Steel Mills: Require massive hot-rolled sections to support extreme dynamic crane loads.
Multi-Story Chemical Plants: Demand complex, multi-level framing to support heavy processing tanks and piping.
Architecturally Complex Facilities: Need bespoke framing to accommodate non-linear, highly customized exterior designs.
Facilities with Unpredictable Future Loads: Benefit from the inherent over-engineering of standard hot-rolled sections.
Conduct a site-specific load analysis to determine your exact clear-span and crane-support requirements before engaging a manufacturer.
Consult with a structural engineer to evaluate local soil conditions and calculate foundation concrete volume variations between the two methods.
Request a comparative schedule projection from a qualified design-build firm to quantify the financial value of a faster operational launch.
Audit potential manufacturers for their delivery track record, staging capabilities, and warranty comprehensiveness.
A: Both systems easily exceed a 50-year lifespan when properly maintained. Durability depends on the protective coatings applied to the steel and routine maintenance of the building envelope. Galvanized framing and high-quality paint systems prevent corrosion equally well in both methodologies.
A: Yes, they can support heavy bridge cranes. However, you must provide exact load specifications, crane capacity, and runway locations to the manufacturer before fabrication begins. The engineers will integrate custom crane brackets and reinforce the specific columns carrying the dynamic load.
A: Generally, yes. Material optimization reduces steel weight, and bolted assembly lowers specialized labor costs. However, if your project requires complex, non-linear architecture or extreme heavy-load modifications, the engineering required can erode the initial cost advantage.
A: Pre-engineered fabrication occurs in a factory setting, creating custom-tapered built-up members optimized for specific stresses. Conventional fabrication uses standard hot-rolled mill sections (like I-beams) that are cut to length and heavily modified or welded on the job site.
A: Yes. Many industrial developers use hybrid structures. They utilize conventional hot-rolled steel for heavy-load areas, such as multi-story office attachments or heavy equipment mezzanines, while using pre-engineered frames for the expansive, clear-span warehouse envelope.
A: Both must meet local building codes, including seismic and wind load requirements. Pre-engineered manufacturers typically have in-house engineers who stamp drawings for specific states, streamlining compliance. Conventional builds require local structural engineers to calculate and certify the bespoke frame design.
